LS PWM Alternator Controller

The LS PWM Alternator Controller is a standalone solution for running a PWM-controlled LS alternator without an ECU.

It generates the required PWM control signal internally, allowing the alternator to regulate at a stable 14.6V charge voltage. Ideal for builds where the factory ECU control is removed or not available.

Designed and built in-house.

Features

• Purpose built for PWM LS alternators only
• No ECU required
• Internal PWM signal generation
• Fixed 14.6V charge output
• Simple 3-wire installation
• Not for engine bay mounting

Installation

3-wire hookup:

• Ignition switched 12V
• Ground
• Alternator PWM connector

Supplied with detailed wiring and installation instructions.

What’s Included

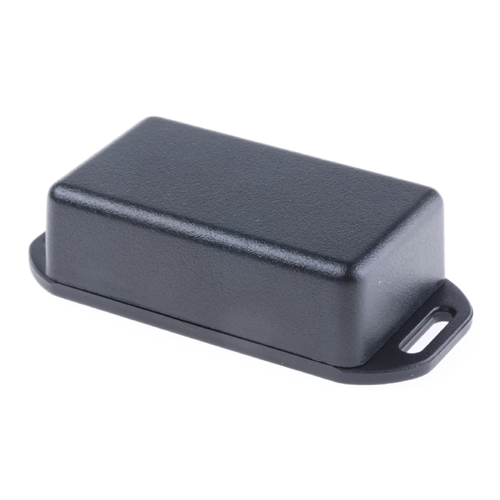

• LS PWM alternator controller in enclosure

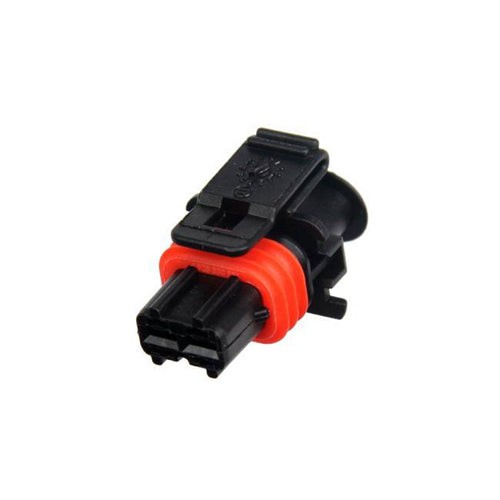

• 2-pin LS alternator connector with 3m pigtail
• Grey TXL 22AWG wiring
• Full installation instructions

Specifications

• Alternator type: LS PWM alternator only
• Connector: 2-pin GM style
• Control method: Ignition switched
• Wire type: Grey TXL 22AWG
• Wire length: 3 metres
• Mounting: Interior only, not waterproof
• Voltage regulation: 14.6V
• Warranty: 12 months
• Stock status: In stock
