Description

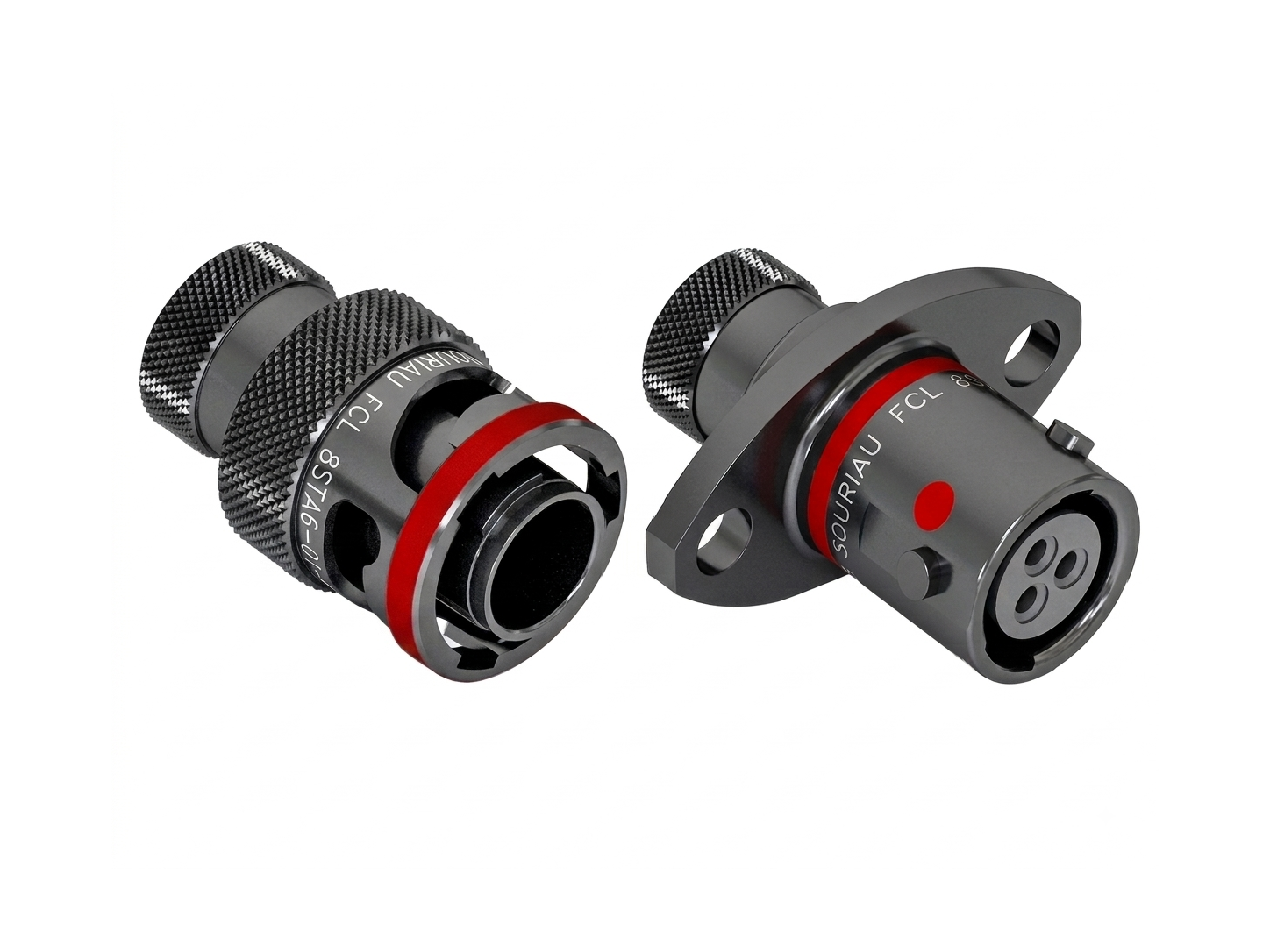

xThis matched pair contains the Souriau 8STA001-03SN oval flange receptacle and the Souriau 8STA601-03PN plug, shell size 01, 3 contacts, guaranteed to mate.
Both connectors share shell size 01, insert arrangement 01-03 and the red N keyway, so this listing gives you both halves of the connection in one order. No cross referencing part numbers and no risk of buying a plug and receptacle that will not couple.
Connector Details
- Receptacle: 8STA001-03SN, oval flange, socket contacts
- Plug: 8STA601-03PN, pin contacts
- Shell Size: Size 01
- 8STA Insert Arrangement: 01-03
- Contact Count: 3

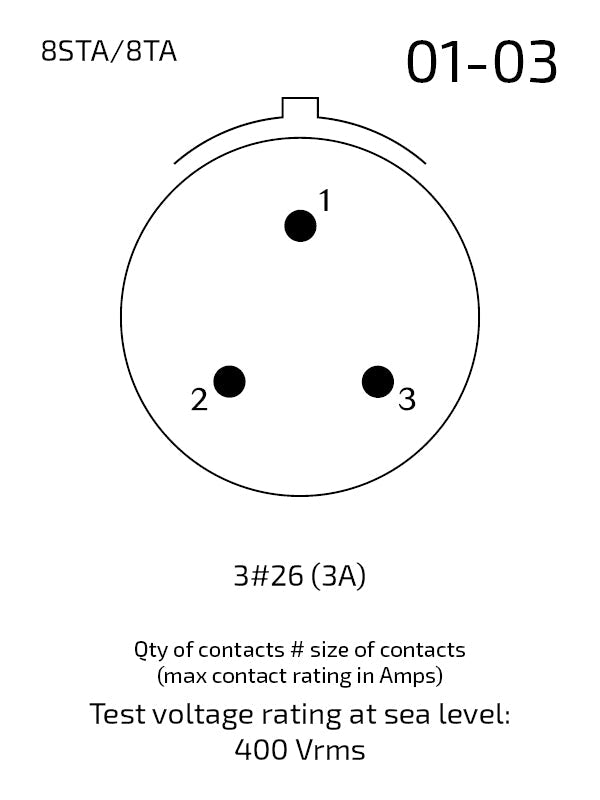

- Contact Arrangement: (3) Size 26 contacts
- Contact Rating: Size 26: 3A per contact
- Wire Range: Size 26: 30 to 24 AWG
- Keyway Colour: Red
- Sealing: IP67 mated, -55C to +175C
- Series Note: Ultra miniature shell size 01, the smallest 8STA connector. Not intermateable with Deutsch Autosport AS series
Compatible Boots and Tooling
- Straight Shrink Boot: HellermannTyton 1038-4-G
- 90-Degree Shrink Boot: HellermannTyton 1183-4-G
- Recommended Tooling: Size 26: M22520/2-01 with 8599-0397 (pins) and 8593-2556A (sockets)
Common Uses
- Motorsport engine harnesses
- ECU and PDM wiring
- Bulkhead connector layouts
- Sensor and actuator sub-looms
- Professional custom automotive wiring harnesses
Souriau 8STA connectors are compact motorsport circular connectors derived from MIL-DTL-38999. Call us on 0458 102 134 if you are unsure which insert arrangement or contact size your build needs.
Boot options: add adhesive lined heatshrink boots sized for this shell, straight (204W201-25) or 90 degree (224W201-25), fitted to one or both connectors. Boots seal and strain relieve the cable exit, the professional finish on any 8STA termination.
