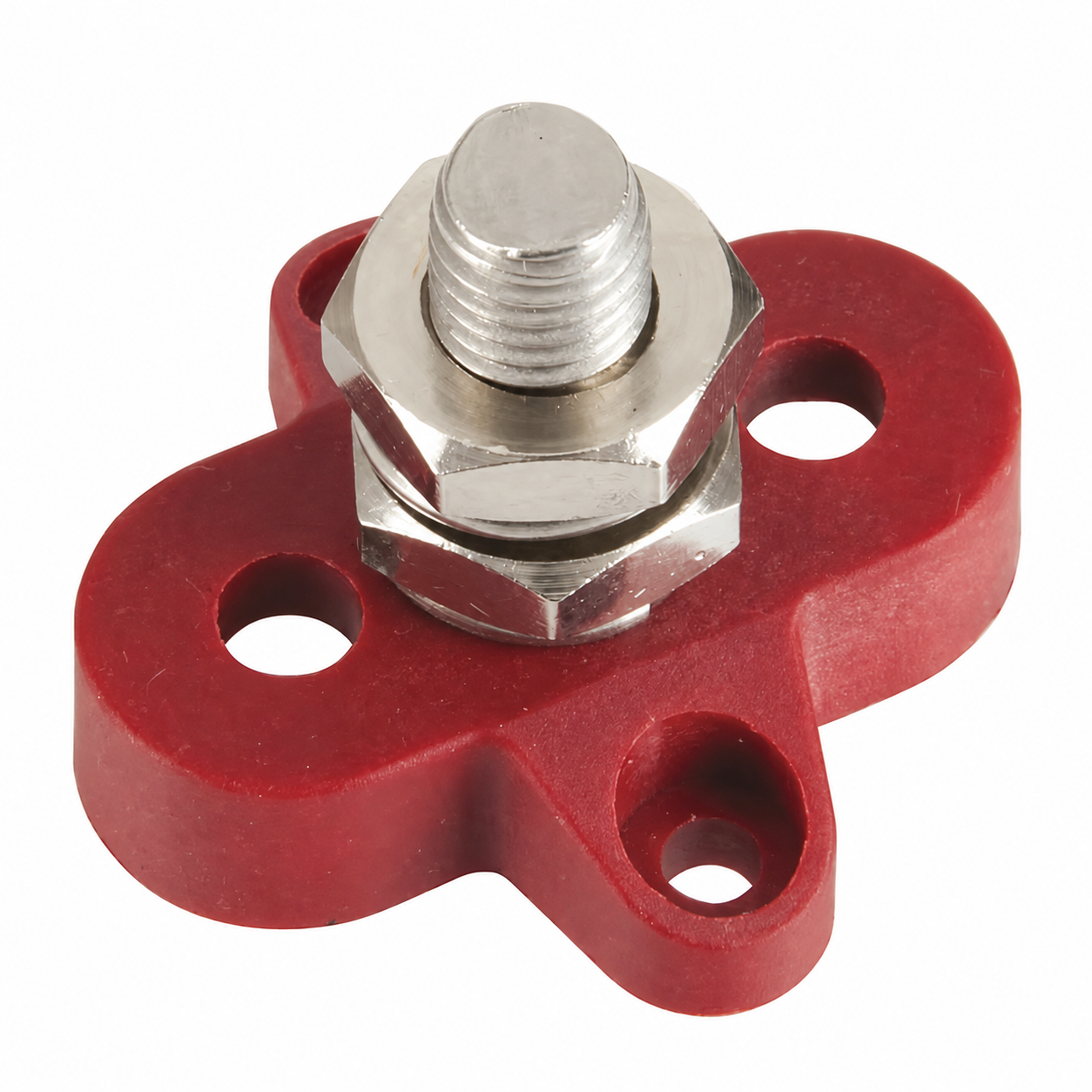

M8 Power Distribution Post, Red

Single M8 stud power distribution post with an insulated glass reinforced nylon base, the clean way to create a central power junction point. Battery relocations, alternator feeds, winch wiring and engine bay power consolidation all end up needing one spot where the heavy cables meet, and this is that spot: bolt it to the panel, stack the ring terminals, done. Red base for the positive side.

Uses:

• Central positive junction for battery relocation wiring
• Alternator and starter feed distribution point
• Splitting a main feed to multiple fused circuits
• Firewall and boot mounted power take off points

Specifications:

• Stud: M8 stainless steel, nuts and washers included
• Rating: 200A continuous with correctly sized cable, 48VDC max
• Body: glass fibre reinforced nylon, insulated base
• Colour: red (positive)
• Panel mount, compact profile

Pair it with the black post for the ground side, size the cables with the battery cable size guide, and check the run with the voltage drop calculator.
