Home Raychem DR-25-1/4 Heatshrink, 1/4 inch

Raychem DR-25-1/4 Heatshrink, 1/4 inch

Raychem DR-25-1/4" Heatshrink, 1/4 inch Genuine Raychem DR-25-1/4" heatshrink tubing, sold by the metre. DR-25 is the...

Vendor: Raychem

SKU: DR-25-1/4-0-SP

Availability: In stock

$12.00; $12.00
Unit price: per

All prices include GST.

Quantity:

Subtotal: $12.00

Quantity:

Add to wishlist

Leave your email and we will notify as soon as the product/variant is back in stock

Raychem DR-25-1/4 Heatshrink, 1/4 inch

$12.00

Quantity:

Add to wishlist

Raychem DR-25-1/4 Heatshrink, 1/4 inch

$12.00

Description

Description

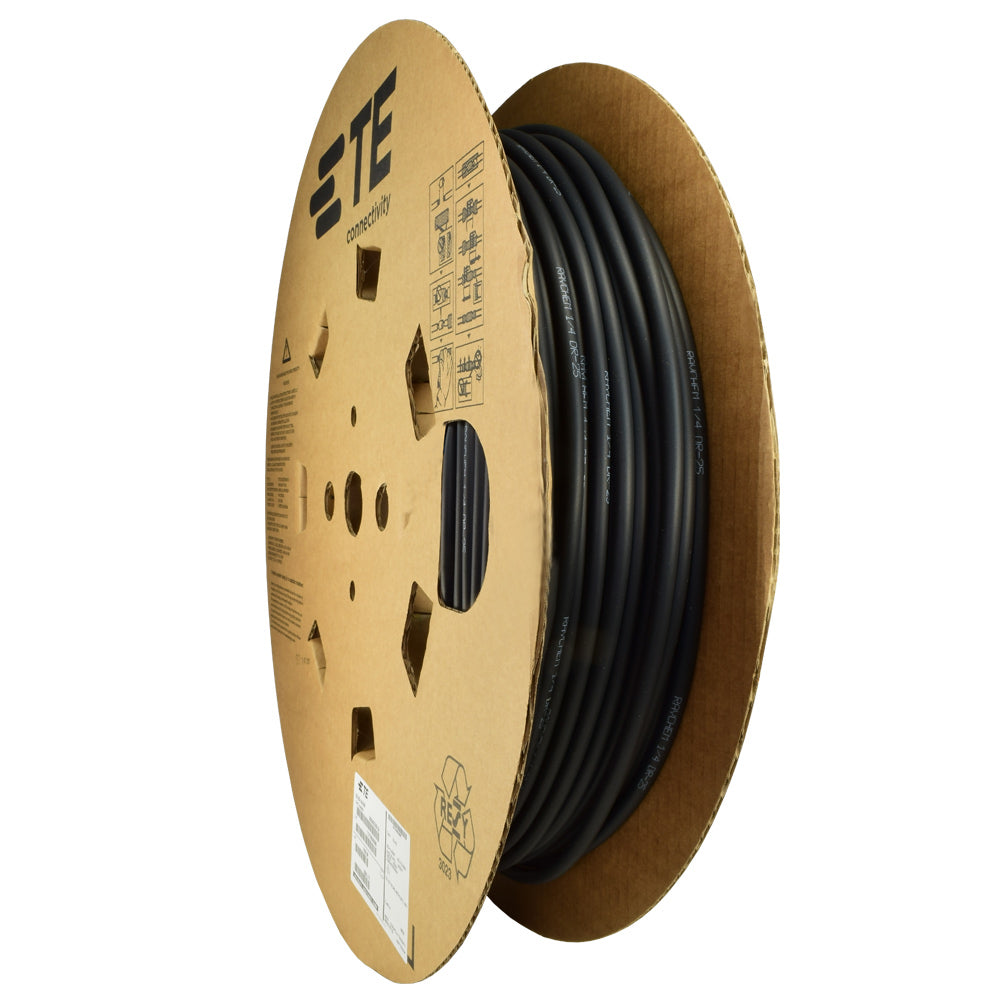

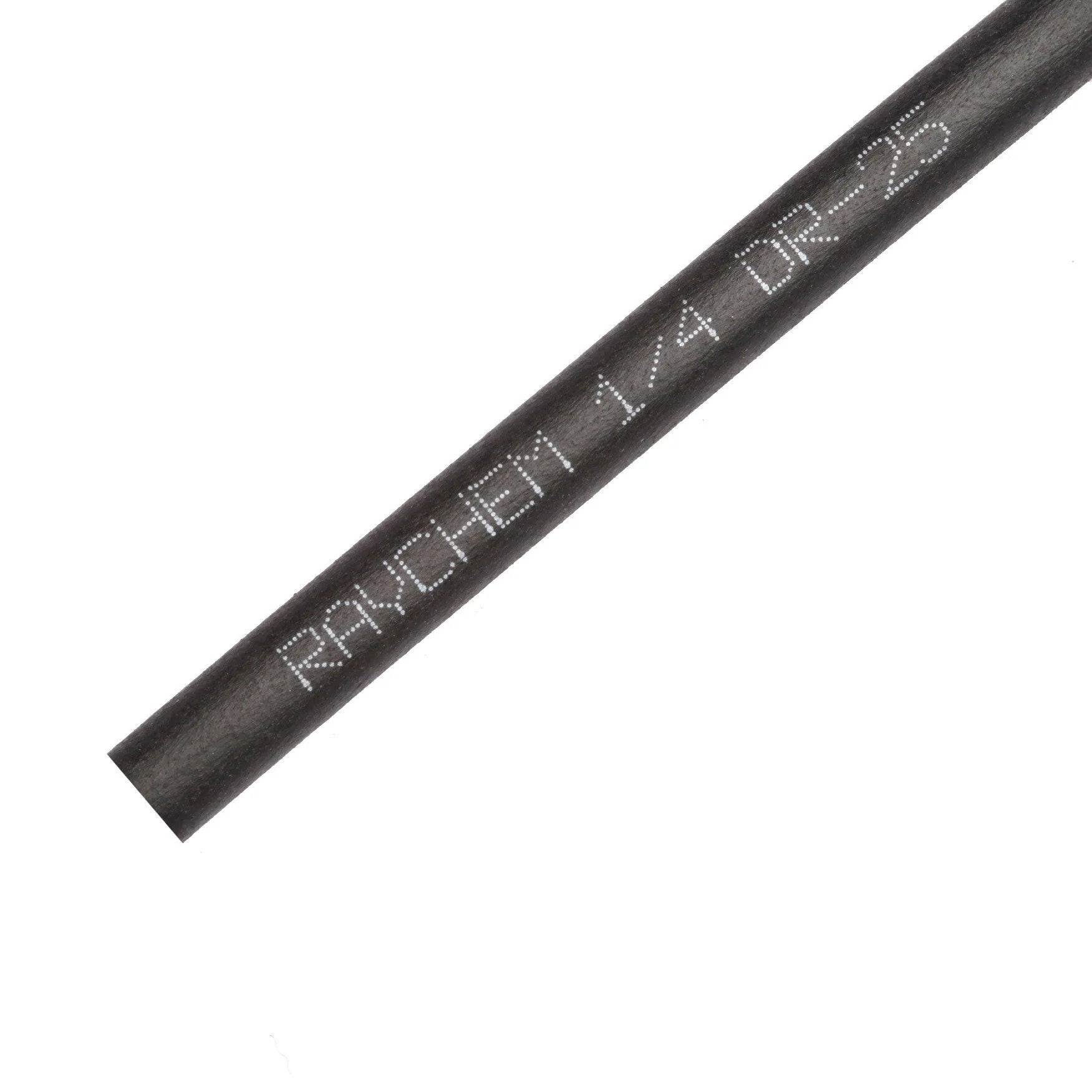

Raychem DR-25-1/4" Heatshrink, 1/4 inch

Genuine Raychem DR-25-1/4" heatshrink tubing, sold by the metre. DR-25 is the industry-standard motorsport harness sleeving used for professional race car, engine bay, off-road, military and harsh-environment wiring applications.

This 1/4 inch DR-25 size is suited to ECU harness branches, grouped sensor wiring, injector branches, ignition branches and smaller motorsport wiring sections where reliable heat, fluid and abrasion resistance is required.

Raychem DR-25 is a 2:1 shrink ratio heatshrink specially formulated for long-term exposure to high temperatures, fuels, oils, hydraulic fluids and other harsh automotive fluids. It is commonly used with System 25 moulded boots, Tefzel wire, Deutsch connectors and suitable adhesive-lined heatshrink to produce a professional finished motorsport wiring harness.

Specifications:

- Part/style: Raychem DR-25-1/4"
- Size: 1/4 inch
- Shrink ratio: 2:1
- Colour/style: Black with white tracer, UK market
- Sold by: The metre, 1 metre equals 3.28 feet
- Operating temperature: -75°C to 150°C
- Installation temperature: 175°C
- Flame retardant: Yes
- Resistant to aviation fuel, diesel fuel, hydraulic fluids and lubricating oils
- Suitable for motorsport, military vehicle, engine bay and harsh-environment wiring applications

Common uses:

- ECU wiring branches
- Sensor wiring groups
- Injector wiring branches
- Ignition wiring branches
- Small engine bay harness sections
- Race car and drag car wiring
- Custom automotive electrical harnesses

Need help choosing DR25 size? Read our Raychem DR25 Size Guide for Motorsport Wiring.

Need help choosing heatshrink? Read our Motorsport Heatshrink Selection Guide.
