Raychem DR-25-3/16 Heatshrink, 3/16 inch

Raychem DR-25-3/16" Heatshrink, 3/16 inch

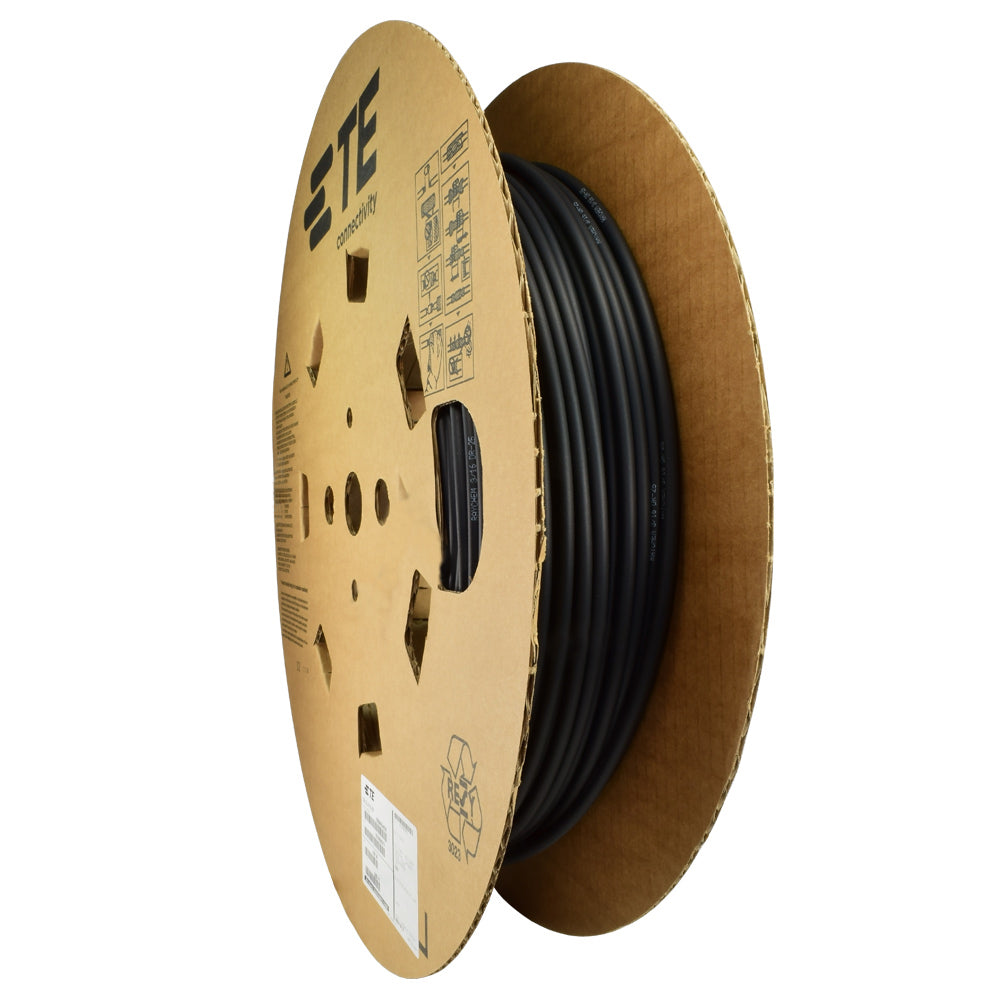

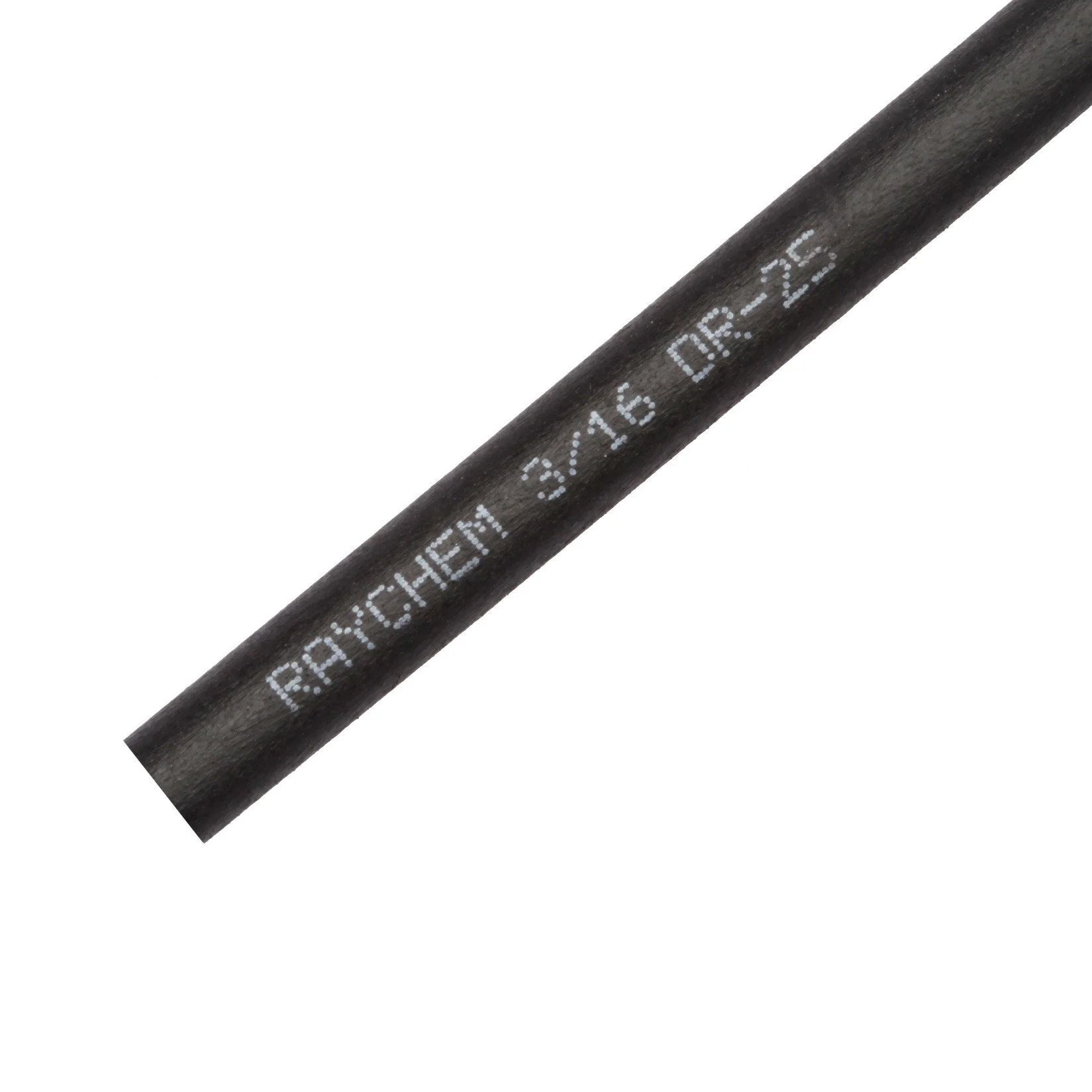

Genuine Raychem DR-25-3/16" heatshrink tubing, sold by the metre. DR-25 is the industry-standard motorsport harness sleeving used for professional race car, engine bay, off-road, military and harsh-environment wiring applications.

This 3/16 inch DR-25 size is suited to small harness branches, grouped sensor wiring, low-current wiring runs and compact motorsport harness sections where heat, fluid and abrasion resistance is required.

Raychem DR-25 is a 2:1 shrink ratio heatshrink specially formulated for long-term exposure to high temperatures, fuels, oils, hydraulic fluids and other harsh automotive fluids. It is commonly used with System 25 moulded boots, Tefzel wire, Deutsch connectors and suitable adhesive-lined heatshrink to produce a professional finished motorsport wiring harness.

Specifications:

- Part/style: Raychem DR-25-3/16"
- Size: 3/16 inch
- Shrink ratio: 2:1
- Colour/style: Black with white tracer, UK market
- Sold by: The metre, 1 metre equals 3.28 feet
- Operating temperature: -75°C to 150°C
- Installation temperature: 175°C
- Flame retardant: Yes
- Resistant to aviation fuel, diesel fuel, hydraulic fluids and lubricating oils
- Suitable for motorsport, military vehicle, engine bay and harsh-environment wiring applications

Common uses:

- Small harness branches
- Sensor wiring groups
- ECU sub-branches
- Injector or ignition sub-branches where suitable
- Race car and drag car wiring
- Off-road vehicle wiring
- Custom automotive electrical harnesses
