Description
xThis matched pair contains the Souriau 8STA018-32SN oval flange receptacle and the Souriau 8STA618-32PN plug, shell size 18, 32 contacts, guaranteed to mate.
Both connectors share shell size 18, insert arrangement 18-32 and the red N keyway, so this listing gives you both halves of the connection in one order. No cross referencing part numbers and no risk of buying a plug and receptacle that will not couple.
Connector Details
- Receptacle: 8STA018-32SN, oval flange, socket contacts
- Plug: 8STA618-32PN, pin contacts
- Shell Size: Size 18

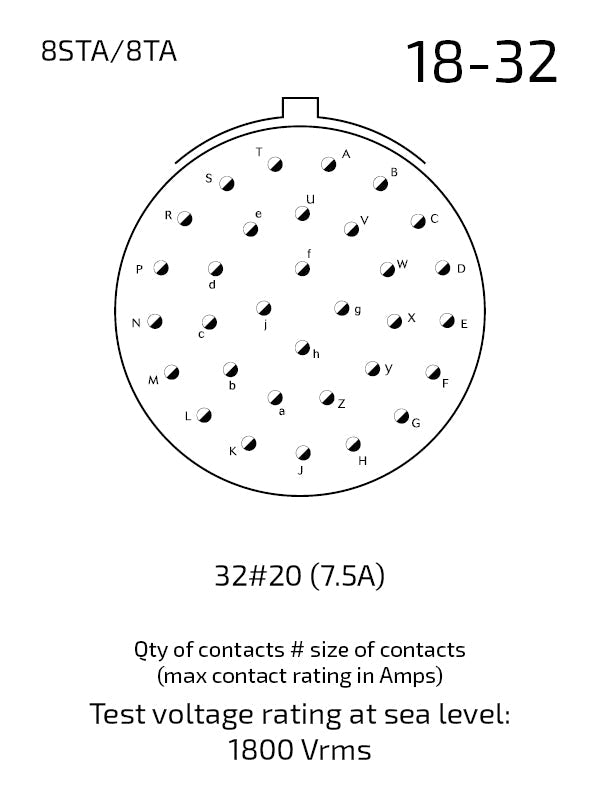

- 8STA Insert Arrangement: 18-32
- Contact Count: 32
- Contact Arrangement: (32) Size 20 contacts
- Contact Rating: Size 20: 7.5A per contact
- Wire Range: Size 20: 24 to 20 AWG
- Keyway Colour: Red
- Sealing: IP67 mated, -55C to +175C
- Intermateability: Mates with Deutsch Autosport AS series of the same shell size, insert arrangement and keyway
Compatible Boots and Tooling
- Straight Shrink Boot: 202K153-25
- 90-Degree Shrink Boot: 222K153-25
- Recommended Tooling: Size 20: M22520/1-01 with M22520/1-04 turret
Common Uses
- Motorsport engine harnesses
- ECU and PDM wiring
- Bulkhead connector layouts
- Sensor and actuator sub-looms
- Professional custom automotive wiring harnesses
Souriau 8STA connectors are compact motorsport circular connectors derived from MIL-DTL-38999. Call us on 0458 102 134 if you are unsure which insert arrangement or contact size your build needs.
Boot options: add adhesive lined heatshrink boots sized for this shell, straight (202K153) or 90 degree (222K152), fitted to one or both connectors. Boots seal and strain relieve the cable exit, the professional finish on any 8STA termination.
