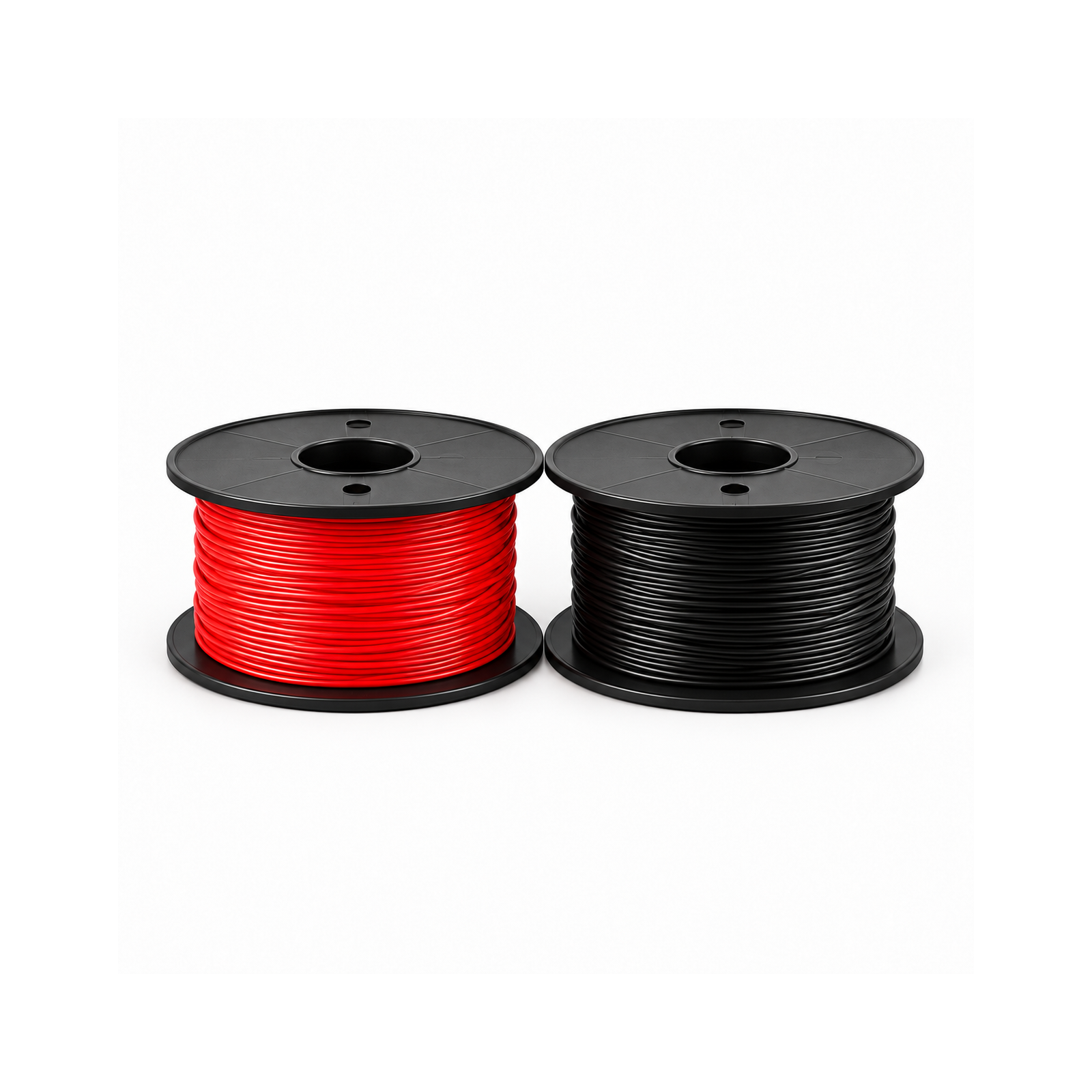

Tefzel Fuel Pump Pack, 12 AWG - 10m Red + 5m Black

The fuel pump wiring, sorted in one order: 10 metres of red and 5 metres of black genuine M22759/32 Tefzel in 12 AWG, the size that keeps voltage at the pump where it belongs. Modern pumps flow on volts, every volt dropped in skinny wire is fuel pressure you paid for and never got, and 12 AWG is how the professional installs do it.

What is in the pack:

• 10m Red 12 AWG, the power run: battery or relay to the pump, with length for clean routing
• 5m Black 12 AWG, the ground run back to chassis or hanger
• Continuous lengths cut fresh from the reel, not offcuts

Specifications:

• Genuine M22759/32 (Spec 55 type) Tefzel insulated wire
• 12 AWG, 37 strand tinned copper (37/28), 5,900 CMA
• Rated 41A free air, around 23A bundled in a loom, covers any single in-tank pump with margin
• Rated 150 degrees C, 600V, fuel and fluid resistant ETFE insulation

Check your run with the voltage drop calculator, terminate the pump end with the Yazaki fuel pump connector your hanger probably takes, and seal every join with Sumitomo W5DL. All colours and gauges also sell by the metre.
