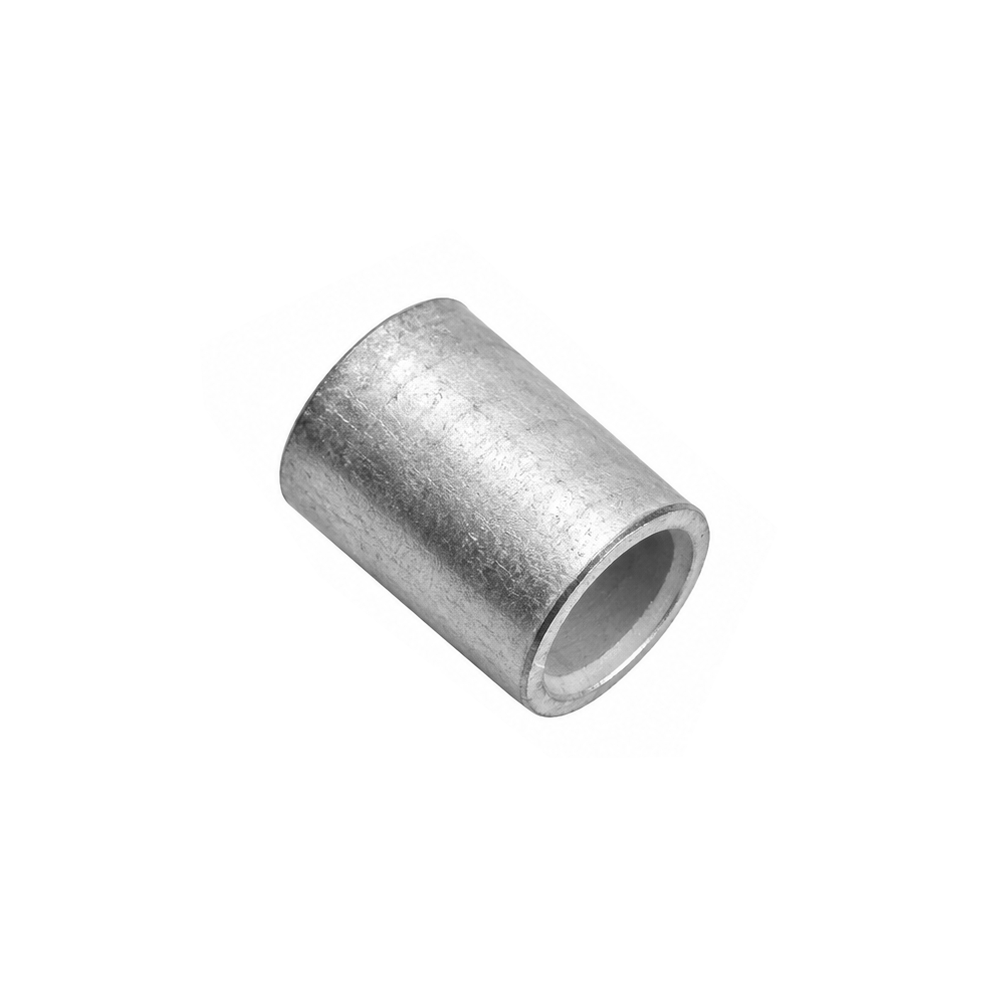

Parallel Wire Splice - Medium (12-10 AWG) - 10 Pack

Tinned copper parallel splice for 12 to 10 AWG wire, sold in packs of 10. A parallel splice joins wires side by side in one closed barrel, all conductors entering from the same end, which makes it the splice for power splits, ground consolidation and end-of-run joins where a butt splice will not package. Crimped, sealed and buried in the loom, it becomes one piece of metal.

Uses:

• Splitting one 12 or 10 AWG feed to multiple circuits
• Fuel pump and fan power splits
• Main ground consolidation inside the harness
• End splices where wires approach from the same direction

Specifications:

• Wire range: 12 to 10 AWG (3.31 to 5.26mm2)
• Material: tinned copper, uninsulated
• Barrel: closed, brazed seam
• Operating temperature: -50 to +149 degrees C
• Sold in packs of 10

Joining wires end to end instead? Use our open barrel splices. Seal every parallel splice under Sumitomo W5DL adhesive heatshrink, and wire the circuits in M22759/32 Tefzel.
