Open Barrel Wire Splice - Medium

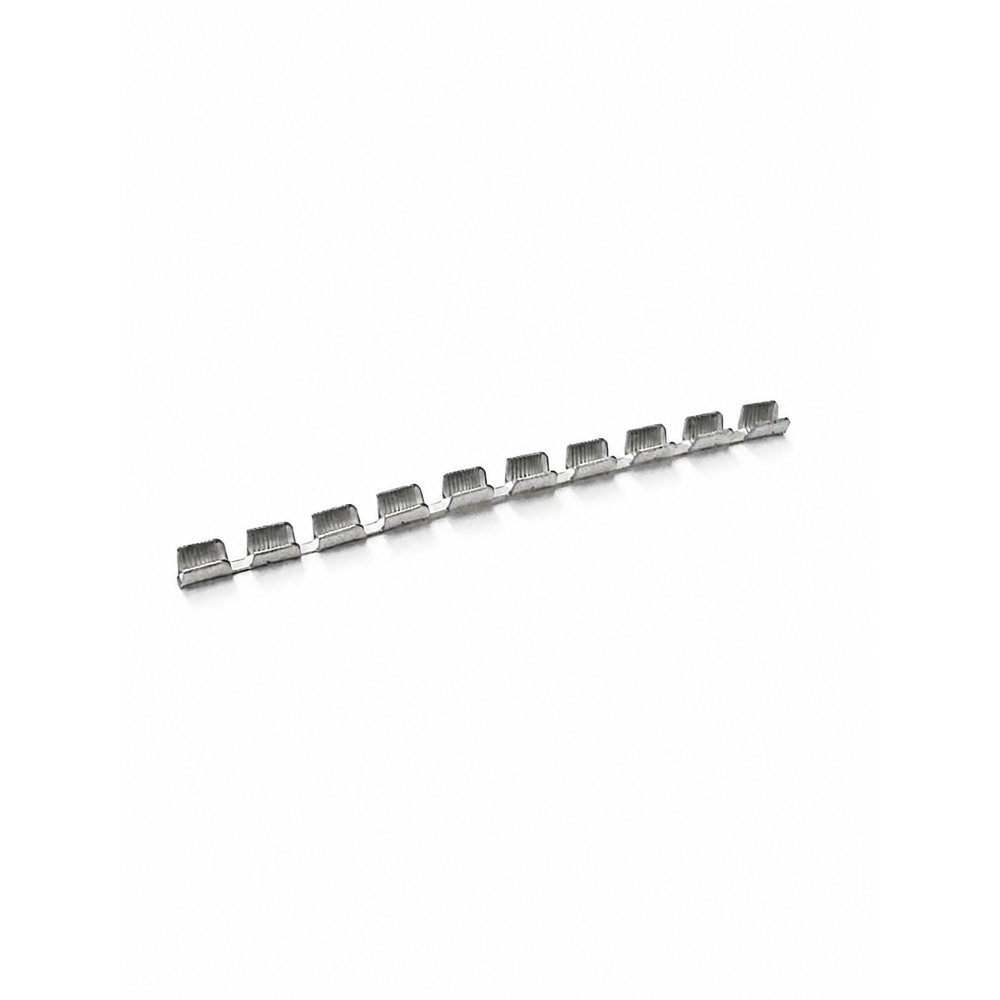

Genuine TE Connectivity (AMP) AMPLIVAR open barrel splice, Medium size, part number 62306-2. The multi-wire workhorse: injector power splits, coil grounds and mid gauge harness joins, crimped concentric twist style. The open barrel crimps around the stripped conductors the same way a connector terminal does, giving a compact, inspectable, vibration proof join.

Sizing by CMA: add up the circular mil area of every wire entering the splice and pick the splice whose CMA range covers the total. This Medium covers 1,500 to 5,000 CMA, from a pair of 22 AWG wires up to a 16 AWG feed splitting into two 18 AWG branches.

Common Tefzel wire CMA values: 22 AWG = 754, 20 AWG = 1,216, 18 AWG = 1,900, 16 AWG = 2,426, 14 AWG = 3,830, 12 AWG = 5,900.

Sold in packs of 10, 20, 50 or 100, pick your pack size above. Harness builders: the 100 pack works out cheapest per splice.

Specifications:

• Part number: TE 62306-2, AMPLIVAR series
• CMA range: 1,500 to 5,000
• Wire range: 18.5 to 13.5 AWG
• Type: 9 serration pigtail splice, tin plated brass
• Genuine TE Connectivity, made in USA

Crimp with an open barrel tool like the Sargent 1028 CT, then seal with Sumitomo W5DL adhesive heatshrink. Other sizes: X-Small, Small and Large.
